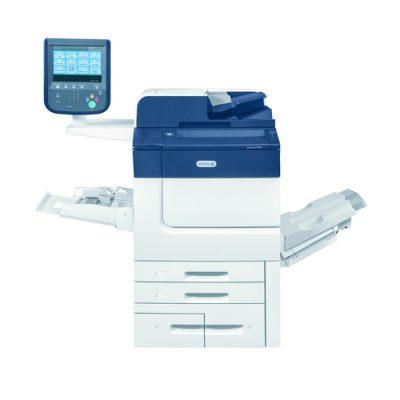

Xerox PrimeLink C9065/C9070 Color Advanced MFP
The Xerox® PrimeLink® C9065/C9070 delivers the most adaptable capabilities on the market. From superior image quality and unmatched media flexibility to professional-grade finishing, automation, and security, it takes entry level to the next level.
WORK SMARTER, NOT HARDER
Looming deadlines are the norm. Now, there's no reason to compromise. Adding a PrimeLink to your arsenal lets you upgrade your productivity in ways you wouldn't think possible. Designed to promote multitasking and collaboration, it’s customizable to suit your work style. The Xerox® Integrated Color Server comes standard. Or you can choose from one of three optional EFI servers for more capabilities and more volume. All you have to do is select the best fit based on your business applications and the level of automation and color accuracy you need. The printer also has access to the Xerox App Gallery. With apps that connect to leading applications including Box®, Microsoft® OneDrive®, Google Drive™, Dropbox™, and Microsoft Office 365™, you can print and scan directly to and from the cloud, simplify workflows and automate complex tasks. Plus, built-in mobile connectivity with @PrintByXerox lets your team stay on-task when they're on the go. With this feature, PrimeLink can securely accept print submissions from any email-enabled device — no extra software is required. It’s all there with the touch of a button. Say yes to more, and Xerox® PrimeLink C9065/C9070 will help you deliver.
Specifications
SIMPLEX SPEEDS Color Black-and-white Color Black-and-white
8.5 x 11 in. / A4 Up to 65 ppm Up to 70 ppm Up to 70 ppm Up to 75 ppm
11 x 17 in. / A3 Up to 33 ppm Up to 35 ppm Up to 35 ppm Up to 37 ppm
12 x 18 in. / SRA3 Up to 29 ppm Up to 30 ppm Up to 30 ppm Up to 33 ppm
AUTO DUPLEX SPEEDS Color Black-and-white Color Black-and-white
8.5 x 11 in. / A4 Up to 65 ppm 2-sided
32 sheets per minute
Up to 70 ppm 2-sided
35 sheets per minute
Up to 70 ppm 2-sided
35 sheets per minute
Up to 75 ppm 2-sided
37 sheets per minute
11 x 17 in. / A3 Up to 32 ppm 2-sided
16 sheets per minute
Up to 35 ppm 2-sided
17 sheets per minute
Up to 35 ppm 2-sided
17 sheets per minute
Up to 37 ppm 2-sided
18 sheets per minute
Printer Dimensions Height: 54.8 in. / 1,391.5 mm; Width: 62 in./ 1,574 mm; Depth: 31 in. / 787 mm
Monthly Duty Cycle Up to 300,000 pages (maximum volume capacity expected in any one month, not expected to be sustained on a regular basis)
Average Monthly Print Volume
(AMPV)
10,000 to 60,000 pages per month
Paper Flexibility/Weights Standard Paper Capacity: 3,260 sheets (Tray 1 & 2: 500 sheets, Tray 3: 870 sheets, Tray 4: 1,140 sheets, Tray 5 (Bypass): 250 sheets)
Max Paper Capacity: 7,260 sheets (Tray 1 & 2: 500 sheets, Tray 3: 870 sheets, Tray 4: 1,140 sheets, Oversized High Capacity Tray 1 & 2: 4,000 sheets)
Sizes: Tray 1: 5.5 x 8.5 in. to 12 x 18 in. / A5 to SRA3; Tray 2: 5.5 x 8.5 in. to 11 x 17 in. / A5 to A3; Tray 3: 7.25 x 10.5 in., 8.5 x 11 in. / B5, A4;
Tray 4: 7.25 x 10.5 in., 8.5 x 11 in. / B5, A4
Image Quality Print Technology Benchmark image quality with 2400 x 2400 dpi resolution with VCSEL ROS and EA Eco with ultra-low melt technology toner for a smooth, offset-like finish
Line Screens 150/200/300/600 dot screen, 200 line screen, stochastic and enhanced text and graphics
Registration • Advanced registration technology for tighter control
• Simple Image Quality Adjustment (SIQA) for de-skew, registration and density uniformity (available on all configurations)
• +/- 1.5 mm. Variation will occur based on paper size, tray, etc.,
Print Features • Print, copy, fax and scan, including
Scan to PC, USB or Email, and mobile printing
• Expansive media range lets you print everything from
postcards to posters, both coated and uncoated stock, up to 350 gsm
• Xerox Extensible Interface Platform® (EIP) allows you to
connect to third-party software solutions
• Inline finishing options offer a professional polish with
banner printing, stapling, hole-punching, folding and booklet
making for presentations, brochures, reports and newsletters
• Be secure with integrated security features such as
IP filtering, image overwrite, secure print, encrypted
Scan to Email, authentication and IPv6 support
• XLS sheet size (Tray 5 and OHCF via Tray 5) supporting up to 220gsm
• Up to 350 gsm (Tray 5 and OHCF only),
auto-duplex up to 256 gsm (Bypass Tray and OHCF)
• Xerox® replaceable units for toners, drums, fuser,
charge corotron, waste bottle, staples
• Custom Paper Setup and Paper Catalog
• Load-while-run toner and paper capability
• Optional Features: Common Access Card Enablement
Kit, Accounting Options, Foreign Device Interface
Servers Standard
• Xerox® Integrated Color Server
Integrated Scanner • Single-pass Duplex Automatic Document Feeder
• Color or black-and-white scanner
• Scan to text searchable PDF, PDF/A, thumbnail preview,
XPS®, PCL® 6, HP-GL2 (direct submission), TIFF, JPEG
• 250-sheet capacity
Optional Feeding Optional High Capacity Feeder (HCF): 2,000 sheets; 7.25 x 10.5 in., 8.5 x 11 in. / 184.2 x 266.7 mm, 279.4 x 215.9 mm (B5, A4);
16 lb. bond to 60 lb. cover / 64 to 220 gsm (uncoated and coated)
Optional Oversized High Capacity Feeder (OHCF): One-Tray OHCF: 2,000 sheets plus Storage Cabinet; Tray 6: 3.9 x 5.8 in. / 100 x 148 mm to 13 x 19.2in. / 330 x 488 mm (up to 350
gsm) Tray 5: Up to 13 x 26 in./330 x 660 mm (up to 220 gsm).
Two-Tray OHCF: 4,000 sheets; OHCF: Tray 6 and 7: 3.9 x 5.8 in. / 100 x 148 mm to 13 x 19.2in./ 330 x 488 mm (up to 350 gsm) Tray 5: Up to 13 x 26 in./330 x 660 mm (up to 220 gsm).
Optional Finishing Business Ready Finisher: Offsetting Top Tray: 500-sheets 8.5 x 11 in. / A4 unstapled. Stacking Stapling Tray: 3,000 sheets unstapled or 100 sets (dual or 4-position staple)
11×17 in., 8.5 x 14 in., A3 or 200 sets (single-position staple) 8.5 x 11 in. / A4. Sizes: Stacking; 4 x 6 in. to 12 x 19.2 in. / A6 to SRA3, Stapling; 7.25 x 10.5 in. to 11 x 17 in. / B5 to A3.
Other; 5.5 x 8.5 in. / A5 output to top tray; punch and offset. Paper weights: Top Tray-16 lb. bond to 130 lb. cover / 60 to 350 gsm (coated and uncoated). Stacker Tray-16 lb.
bond to 96 lb. cover / 60 to 256 gsm (coated and uncoated).
Business Ready Finisher Booklet Maker Finisher: Offsetting Top Tray: 500-sheets 8.5 x 11 in. / A4 unstapled. Stacking Stapling Tray: 1,500 sheets unstapled or 200 sets
(single position stapling or dual or 4-position staple) or 100 stapled sets of 11 x 17 in. / A3 / SRA3. 11×17 in., 8.5 x 14 in., A3 or
200 sets (single-position staple) 8.5 x 11 in. / A4. Sizes: Stacking; 4 x 6 in. to 12 x 19.2 in. / A6 to SRA3. Stapling; 7.25 x 10.5 in. to 11 x 17 in. / B5 to A3.
Other; 5.5 x 8.5 in. / A5 output to top tray; punch and offset. Paper weights: Top Tray-16 lb. bond to 130 lb. cover / 60 to 350 gsm (coated and uncoated),
Stacker Tray-16 lb. bond to 96 lb. cover / 60 to 256 gsm (coated and uncoated). Booklet Maker-16 lb. bond to 96 lb. cover / 60 to 256 gsm
(uncoated, 106 to 220 gsm (coated)). Booklet Maker-Saddle-stitch 2 to 16 sheets (7 sheets at 106 to 176 gsm coated or 5 sheets at 177 to 220 gsm coated).
Production Ready Finisher (requires Interface Decurler Module): Booklet Size: 100 sheets (90 gsm) uncoated, 35 sheets (90 gsm) coated. Paper Size: 7.2 x 5.7″/182 x
146mm to 11.7 x 17″/297 x 432mm. Max Weight: 350 gsm. Options: Punch, Inserter and C/Z Folder. Trays: Two output trays, 500-sheet top tray, 3,000-sheet stack tray of 5.83 x
5.75″/148 x 146mm to 13 x 19.2″/330 x 488mm.
Production Ready Finisher Plus (requires Interface Decurler Module): Provides same function as the Production Ready Finisher with a 500-sheet top tray and 2,000-sheet
stacker tray. Used to connect third-party inline finishing options. Includes PFIM Partner Finishing Interface Module.
Production Ready Finisher with Booklet Maker (requires Interface Decurler Module): Booklet Size: 7.17 x 7.17″/182 x 182mm to 13 x 19.2″/330 x 488mm up to 256 gsm.
Trays: 500-sheet top tray, 2,000-sheet stack tray, saddle-stitch booklet tray (up to 120 pages, 30 sheets/90 gsm uncoated, 15 sheets/106 gsm coated).
Offset Catch Tray: 500-sheet stacking.
Xerox® SquareFold® Trimmer Module: Face Trim: 120 pages (30 sheets). Compatibility: Production Ready Finisher, Booklet Maker, Crease and Two-Sided Trimmer.
Xerox® C/Z Folder: Sheet Size: 8.5 x 11″ (A4). Half-Z Fold Sheet Size: Larger stocks reducing to 8.5 x 11″ (A4). Weight Range: 64 – 90 gsm. Compatibility: Production Ready
Finisher, Booklet Maker.
Xerox® Inserter: Capacity: 250 sheets. Capabilities: Trimming, punching, folding, stapling, stacking. Paper Size: 7.2 x 5.8″ (182 x 148 mm) to 13 x 19.2″ (330 x 488 mm). Max
Weight: 350 gsm. Compatibility: Production Ready Finisher.
Xerox® Crease/Two-sided Trimmer: Trim Range: 0.236″ (6 mm) to 0.985″ (25 mm). Paper Size: 7.7 x 8.3″/194 x 210 mm to 13 x 19.2″/330 x 488 mm.
Max Weight: 350 gsm. Compatibility: Production Ready Finisher and Booklet Maker. Buffering Unit: Up to five customizable mountain or valley creases per sheet.
Plockmatic Pro 50/35 Booklet Maker: Booklet Capacity: 200 pages (50 sheets). Capabilities: Face trimming, square fold, rotate crease and bleed trim.
Paper Size: Up to 12.6 x 9″ (320 x 228.6 mm). Max Weight: 300 gsm. Compatibility: Production Ready Finisher Plus.
For more optional finishing refer to Product Explorer explorexeroxproducts.com/Product.
Xerox App Gallery Go to xerox.com/AppGallery to learn how you can expand the capabilities of the PrimeLink C9065/C9070 and work in new ways with dedicated apps for business,
education, healthcare and more
Accessories
Optional
Xerox® EX-c C9065/C9070 Print Server Powered by Fiery®
Xerox® EX-i C9065/C9070 Print Server Powered by Fiery®
Xerox® EX C9065/C9070 Print Server Powered by Fiery®
Simple Catch Tray (Europe only)
Offset Catch Tray
High Capacity Feeder (A4)
1-Tray Oversized High Capacity Feeder with Storage Cabinet
2-Tray Oversized High Capacity Feeder
Interface Decurler Module
Xerox® Business Ready Finisher (requires a Vertical Transport Kit)
Xerox® Business Ready Finisher Booklet Maker (requires a Vertical Transport Kit)
Xerox® Production Ready Finisher (requires Interface Decurler Module)
Xerox® Production Ready Booklet Maker Finisher (requires Interface Decurler Module)
Xerox® Production Ready Finisher Plus (includes PFIM Partner Finishing Interface Module;
requires Interface Decurler Module)
XLS Extension Tray Kits
Plockmatic Pro50/35â„¢ Booklet Maker
Xerox® C/Z Folder
Xerox® Basic Punch
GBC® AdvancedPunch™ Pro
Xerox® Crease/Two-sided Trimmer
Xerox® SquareFold® Trimmer Module
Xerox® Inserter
Convenience Stapler
Foreign Device Interface Kit
Mobility Plate
PostScript Kit
VOIP Fax (SW) Kit
Fax Kits (1 or 3 Line; requires fax installation kit)
Server Fax Kit
SIPRNET Kit
Extension Long
Smart Card Enablement Kit
Integrated RFID Card Reader Kit (external
Paper Handling
SINGLE-PASS DUPLEX AUTOMATIC DOCUMENT FEEDER (DADF) – NETWORK SCANNING
Capacity3 250 sheets of plain paper – 20 lb. / 75 gsm
Speed Up to 270 ipm color / 270 ipm black-and-white (2-sided, 8.5 x 11 in. / A4)
Paper Sizes Custom sizes: 5.5 x 8.5 in. to 11 x 17 in. / A6 to A3
Weights 16 to 53 lb. bond / 38 to 200 gsm
TRAY 5 (BYPASS)
Capacity3 Up to 250 sheets
Sizes Custom sizes: 4 x 6 in. to 13 x 26 in. / 100 x 148 mm to 330.2 x 660 mm (A5 to SRA3)
XLS sheet size: Up to 13 x 26 in. (330 x 660 mm)
Weights 16 lb. bond to 129 lb. cover / 60 to 350 gsm (60 to 350 gsm uncoated; 106 to 350 gsm coated);
XLS sheet: 60-220 gsm uncoated/106 to 220 gsm coated. Limit XLS in Bypass (Tray 5) to 5 or less sheets.
Envelope Capacity 30 to 50 envelopes
Envelope Sizes #10 Commercial, Monarch (including custom size), C4, C5 (Available as Tray 5 (Bypass). Paper Size Default within
tools. Run flap open at the trail edge).
Custom sizes: 7.5 x 6.7 in. to 9.45 x 6.81 in./ 190 x 170 mm to 240 x 173 mm
Digital Laser envelopes recommended.
Envelope Weights 75 to 90 gsm
TRAYS 1 TO 4
Capacity3 Tray 1: 500 sheets
Tray 2: 500 sheets
Tray 3: 870 sheets
Tray 4: 1,140 sheets
Sizes Tray 1: 5.5 x 8.5 in. to 12 x 18 in. / A5 to SRA3
Tray 2: 5.5 x 8.5 in. to 11 x 17 in. / A5 to A3
Tray 3: 7.25 x 10.5 in., 8.5 x 11 in. / B5, A4
Tray 4: 7.25 x 10.5 in., 8.5 x 11 in. / B5, A4
Weights Trays 1 and 2: 16 lb. bond to 94 lb. cover / 60 to 256 gsm (60 to 256 gsm uncoated; 106 to 220 gsm coated)
Trays 3 and 4: 16 lb. bond to 80 lb. cover / 60 to 220 gsm (60 to 220 gsm uncoated; 106 to 220 gsm coated)
Print Resolution Up to 2400 x 2400 dpi
Line Screens 600, 300, 200 and 150 Clustered Dot, 200 Rotated Line Screen (depending on
print server / controller selected)
Registration • Advanced registration technology for tighter control
• Simple Image Quality Adjustment (SIQA) for de-skew, registration and density uniformity (Available on all
configurations as a Maintenance Tool: Alignment Adjustment)
Up to 1.5mm. Variation will occur based on paper size, tray, etc.
First-Print-Out Time PS-A4 LEF Simplex Color 10.4 seconds / Black-and-white 8.5 seconds
Print Drivers Xerox® Smart Start Driver Installer, Xerox® Global Print Driver®
For information about supported print drivers please visit our Drivers & Downloads page and
specify your device at www.support.xerox.com.
PRINT SOLUTIONS
Mobile Printing Apple® AirPrint®, Google Cloud Print™ Ready, Mopria® Print Service Plug-in for Android, Xerox® @PrintByXerox App,
Xerox® Workplace Cloud/Suite Mobile Print Solution.
Learn more at http://www.xerox.com/MobileSolutions
Copy
From the Platen:
From the DADF:
As fast as 7.8 seconds color / 5.1 seconds black-and-white
As fast as 9.6 seconds color / 5.3 seconds black-and-white
Warm Up Time 90 seconds (from cold powered down to Ready Copy)
Digital Imaging Auto color
Auto rotation
Image shift
Edge erase
Auto centering
Original type selection (photo and text, photo, text, map)
Lighter/Darker
Background suppression
Auto and manual contrast
Sharpness
Color balance, color shift and saturation
Reduce / Enlarge Variable zoom from 25% to 400% in 1% increments
Anamorphic zoom
Six user-programmable percentages
Special Features Auto paper select
Auto reduction/enlargement to fit selected paper size
Auto tray switching
Automatic job recovery
Auto color selection
Area designation
Poster mode
Annotation
Single/Dual color
Xerox® PrimeLink® C9065/C9070 Printer
9
Booklet creation
Multi-up – 2, 4 or 8 up
Repeat image
Negative image
Mirror image
Covers insertion (front only, front and back, back only, blank or printed)
Build job (enables special programming for different pages in one document – can be used for inserts, different
paper sources and mixing input from the document glass and the document feeder)
Job interrupt
Book copying
Sample job
Mixed-size originals
Sheet insert
Stamping/Bates
2-in-1
X Y zoom
Zoom range 25 to 400%
Scan
Concurrency Scan while printing or while it is transferring scan to network or fax jobs
Scan Features Mixed size originals
Edge erase
Reduction/enlargement
Fit to size
Scan build job
Compression Quality / File Size Control
Original type (photo and text, photo, text)
Auto background and shadow suppression
Job Flow Sheets
Scan to USB
Preview scan job
