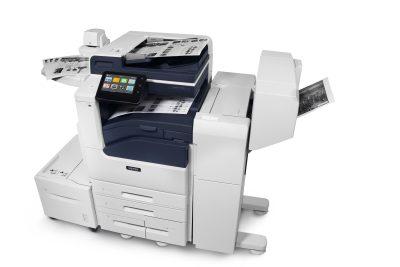

Xerox VersaLink B7100 Series MFP
SUPERIOR IMAGE QUALITY – VersaLink B7100
With a high-resolution output of 1200 x 1200 dpi, the VersaLink takes your documents to the next level with sharp image quality. Rich blacks and smoother shades give the impact of your communication, while crisp text enhances clarity and legibility.
BREEZE THROUGH TASKS
EFFORTLESSLY

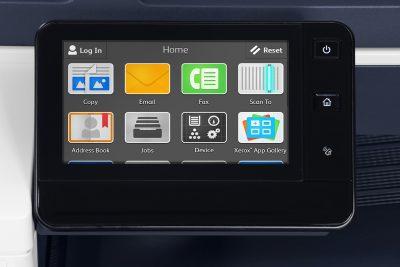

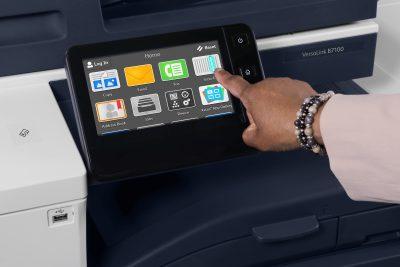

Getting up to speed is easy on the Xerox VersaLink B7100 Serries with a tablet-like touch screen that balances simplicity and time-saving efficiency. The familiar, intuitive user interface (UI) guides you through tasks, eliminating extra steps. And the ability to personalize the UI empowers you to work the way you want.

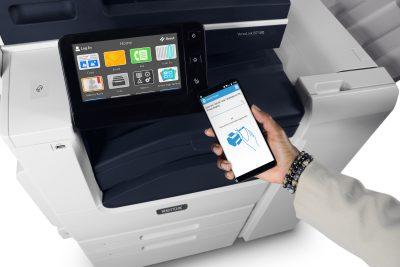

Mobility features, like Wi-Fi Direct, take the hassle out of printing directly from your favorite mobile devices. Near Field Communication (NFC) lets you authenticate with a smartphone to connect in seconds, and the Xerox® Quick Link app enables you to quickly connect and print without IT support, reducing the burden on IT teams.
And with VersaLink Devices, more capabilities mean added convenience, not more complexity. Leading-edge scanning functionality and automation of physical and digital workflows allow you to scan, digitize and route information without missing a beat, reducing errors, and saving time. Furthermore, industry-specific apps for education, healthcare, legal and more help you stay plugged in and productive.
Specifications
| Electrical Requirements | ||||
| North America | Voltage: 110-127 V -10%/+6%Frequency: 50/60 Hz +/-3%, 12A | |||
| Europe and Other Geographies | Voltage: 220-240 V +/-10% Frequency: 50 Hz +/-3%, 8A | |||
| Power Consumption | ||||
| Printing6 | 25 ppm = 0.39 kWh or less; 30 ppm = 0.48 kWh or less; 35 ppm = 0.57 kWh or less | |||
| Standby Mode6 | 110V: 100 watts or less; For 220V: 94 watts or less | |||
| Sleep Mode6 | 0.4 Watts or less | |||
| Operating Environment | ||||
| Required Temperature Range (Storage) | 32° to 95° F (0° to 35° C) | |||
| Required TemperatureRange (Operating) | 50 to 90° F (10 to 32° C) | |||
| Required Relative Humidity | 10% to 85% | |||
| Sound Power Levels | Printing: 6.85 B(A) or less 25 ppm = 6.65 B(A); 30 ppm = 6.80 B(A); 35 ppm = 6.85 B(A) Standby: 4.10 B(A) or less 25 ppm = 4.10 B(A); 30 ppm = 4.10 B(A); 35 ppm = 4.10 B(A) Full System (including Finisher and HCF) Printing: 25 ppm = 7.18 B(A); 30 ppm = 7.30 B(A); 35 ppm = 7.40 B(A) Standby: 25 ppm = 4.10 B(A); 30 ppm = 4.10 B(A); 35 ppm = 4.10 B(A) | |||
| Boot Time (from Off to UI Ready) | As fast as 60 seconds | |||
| Warm-up Time(from Sleep to UI Ready) | As fast as 12 seconds | |||
| Dimensions and Weight (Unpackaged) | Width | Depth | Height | Weight |
| Base Unit (Desktop Model) | 23.23 in./590 mm | 26.41 in./670.8 mm | 30.18 in./766.5 mm | 119.5 lbs/54.2 kg |
| Base Unit with Single Tray with Stand Module | 24.24 in./615.7 mm | 26.41 in./670.8 mm | 44.04 in./1117.2 mm | 170.0 lbs./77.1 kg |
| Base Unit with High Capacity Tandem Tray Module | 24.24 in./615.7 mm | 26.41 in./670.8 mm | 44.04 in./1117.2 mm | 188.7 lbs./85.6 kg |

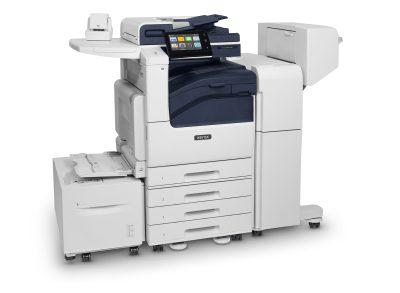

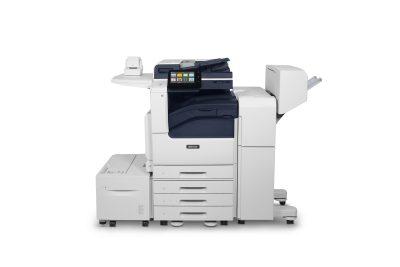

| Base Unit with Three Tray Module and Office Finisher with Booklet Maker | 44.69 in./1135.2 mm | 26.71 in./678.6 mm | 44.04 in./1117.2 mm | 261.7 lbs./118.7 kg |
| Base Unit with Three Tray Module and Integrated Office Finisher | 26.30 in./668 mm | 26.41 in./670.8 mm | 44.04 in./1117.2 mm | 204.6 lbs./92.8 kg |
| Base Unit with Three Tray Module, Office Finisher, Booklet Maker, and High Capacity Feeder | 57.1 in./1451.4 mm | 26.7 in./678.6 mm | 44.04 in./1117.2 mm | 325.62 lbs./147.7 kg |
| Base Unit with High Capacity Tandem Tray Module and Integrated Office Finisher | 26.30 in./668 mm | 26.41 in./670.8 mm | 44.04 in./1117.2 mm | 213.2 lbs./96.7 kg |
| Base Unit with High Capacity Tandem Tray Module, Office Finisher, Booklet Maker, and High Capacity Feeder | 57.1 in./1451.4 mm | 26.7 in./678.6 mm | 44.04 in./1117.2 mm | 334.22 lbs./151.6 kg |
System Specifications
| System Specifications | VersaLink® B7125 | VersaLink® B7130 | VersaLink® B7135 |
| One-sided Speed1 8.5 x 11 in./A4/210 x 297 mm | Up to 25 ppm (pages per minute) long edge feed (LEF) | Up to 30 ppm LEF | Up to 35 ppm LEF |
| 8.5 x 14 in./216 x 356 mm 11 x 17 in./A3/297 x 420 mm | Up to 16 ppm Up to 14 ppm | Up to 20 ppm Up to 17 ppm | Up to 22 ppm Up to 19 ppm |
| Two-sided Speed1 8.5 x 11 in./A4/210 x 297 mm 8.5 x 14 in./216 x 356 mm 11 x 17 in./A3/297 x 420 mm | Up to 25 ppm LEF Up to 10 ppm Up to 9 ppm | Up to 30 ppm LEF Up to 12 ppm Up to 11 ppm | Up to 35 ppm LEF Up to 13 ppm Up to 12 ppm |
| Monthly Duty Cycle2 | Up to 107,000 pages/month2 | Up to 129,000 pages/month2 | Up to 153,000 pages/month2 |
| Recommended Average Monthly Print Volume3 | Up to 13,000 pages | Up to 15,000 pages | Up to 17,000 pages |
| Hard Drive | 320 GB HDD (Optional on Desktop model) | ||
| Processor | 1.05 GHz Dual-Core | ||
| Memory | 4 GB | ||

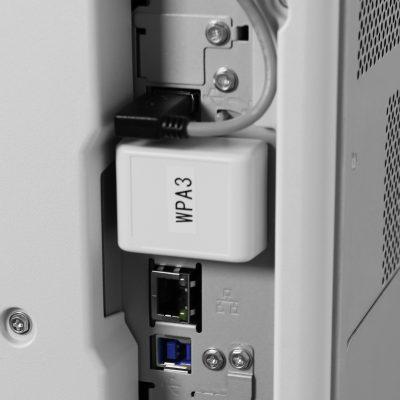

| Connectivity | Ethernet 10/100/1000 Base-T, High-speed USB 3.0, Wi-Fi 802.11n and Wi-Fi Direct with optional Wi-Fi Kit (concurrent wired and wireless connections supported), NFC Tap-to-Pair | ||
| Controller Features | Embedded Security and Integrity Control, TLS1.3 Support, NIST800-171r1 Compliance Print on Available media, Mopria, Remote Install Wizard – Secure Fax Remote Enable/Disable, Air Print | ||
| User Interface Languages | English, French, Italian, German, Spanish, Brazilian Portuguese, Russian, Dutch, Swedish, Danish, Finnish, Norwegian, Greek, Turkish, Polish, Czech, Hungarian, Romanian, Catalan, Ukrainian, Croatian, Arabic |
| System Specifications | VersaLink® B7125 | VersaLink® B7130 | VersaLink® B7135 |
| One-sided Speed1 8.5 x 11 in./A4/210 x 297 mm | Up to 25 ppm (pages per minute) long edge feed (LEF) | Up to 30 ppm LEF | Up to 35 ppm LEF |
| 8.5 x 14 in./216 x 356 mm 11 x 17 in./A3/297 x 420 mm | Up to 16 ppm Up to 14 ppm | Up to 20 ppm Up to 17 ppm | Up to 22 ppm Up to 19 ppm |
| Two-sided Speed1 8.5 x 11 in./A4/210 x 297 mm 8.5 x 14 in./216 x 356 mm 11 x 17 in./A3/297 x 420 mm | Up to 25 ppm LEF Up to 10 ppm Up to 9 ppm | Up to 30 ppm LEF Up to 12 ppm Up to 11 ppm | Up to 35 ppm LEF Up to 13 ppm Up to 12 ppm |
| Monthly Duty Cycle2 | Up to 107,000 pages/month2 | Up to 129,000 pages/month2 | Up to 153,000 pages/month2 |
| Recommended Average Monthly Print Volume3 | Up to 13,000 pages | Up to 15,000 pages | Up to 17,000 pages |
| Hard Drive | 320 GB HDD (Optional on Desktop model) | ||
| Processor | 1.05 GHz Dual-Core | ||
| Memory | 4 GB | ||
| Connectivity | Ethernet 10/100/1000 Base-T, High-speed USB 3.0, Wi-Fi 802.11n and Wi-Fi Direct with optional Wi-Fi Kit (concurrent wired and wireless connections supported), NFC Tap-to-Pair | ||
| Controller Features | Embedded Security and Integrity Control, TLS1.3 Support, NIST800-171r1 Compliance Print on Available media, Mopria, Remote Install Wizard – Secure Fax Remote Enable/Disable, Air Print | ||
| User Interface Languages | English, French, Italian, German, Spanish, Brazilian Portuguese, Russian, Dutch, Swedish, Danish, Finnish, Norwegian, Greek, Turkish, Polish, Czech, Hungarian, Romanian, Catalan, Ukrainian, Croatian, Arabic |
Copy
| Copy | VersaLink® B7125 | VersaLink® B7130 | VersaLink® B7135 |
| Document Scanner | 130-sheet Single-pass Duplex Automatic Document Feeder (DADF) | ||
| Document Scanner Size | Platen: Up to 11.7 x 17 in./297 x 431.8 mm DADF: Up to 11.7 x 17 in./297 x 431.8 mm | ||
| Simplex Copy Speed | Up to 25 cpm (copies per minute) 8.5 x 11 in. Up to 25 cpm A4 (210 x 297 mm) | Up to 30 cpm (copies per minute) 8.5 x 11 in. Up to 30 cpm A4 (210 x 297 mm) | Up to 35 cpm (copies per minute) 8.5 x 11 in. Up to 35 cpm A4 (210 x 297 mm) |
| Duplex Copy Speed | Up to 25 cpm (copies per minute) 8.5 x 11 in. Up to 25 cpm A4 (210 x 297 mm) | Up to 30 cpm (copies per minute) 8.5 x 11 in. Up to 30 cpm A4 (210 x 297 mm) | Up to 35 cpm (copies per minute) 8.5 x 11 in. Up to 35 cpm A4 (210 x 297 mm) |
| First-Copy-Out Time | As fast as 5.8 seconds | As fast as 4.3 seconds | As fast as 4.3 seconds |
| Sides (input: output) | 1:1, 1:2, 2:2 and 2:1 | ||
| Quantity | 1 to 999 | ||
| Resolution (max.) | Up to 600 x 600 dpi | ||
| Reduction/Enlargement | Variable zoom from 25% to 400% in 1% increments | ||
| Concurrency | Concurrent scanning and printing | ||
| Copy Features | Annotation (Page Numbers, Comments, Date Stamp, Bates Stamping)* Automatic Background Suppression Book Copying with Center Erase Booklet Copying* Collation Darkness Control Edge Erase Front Cover ID Card Copy Image Enhancement Image Shift Lighten/Darken N-up Reduce/Enlarge 25% to 400% Original Orientation Original Size Original Type Page Layout Sample Copy Saturation Sharpness *Requires HDD/Productivity Kit |
Scan
Xerox® VersaLink® B7125/B7130/B7135 Multifunction Printer
| Scan | |
| Capability | Black-and-white and color scanning |
| Concurrency | Scan while the system is printing copy or network print jobs, or while it is transferring scan to network or fax jobs |
| Simplex Input Speed | Black-and-white: Scan up to 80 ipm – 8.5 x 11 in./A4 (210 x 297 mm) Color: Scan up to 80 ipm – 8.5 x 11 in./A4 (210 x 297 mm) |
| Duplex Input Speed | Black-and-white: Scan up to 80 ipm – 8.5 x 11 in./A4 (210 x 297 mm) Color: Scan up to 80 ipm – 8.5 x 11 in./A4 (210 x 297 mm) |
| Resolution | Optical – 600 x 600 dpi |
| Bit Depth | 24-bit color/8-bit grayscale |
| Maximum Scan Area | Platen: 11.7 x 17 in./297 x 431.8 mm Document Feeder: 11.7 x 17 in./297 x 431.8 mm |
| Network Filing Protocols | FTP SMTP SMB sFTP |
Mobile and Cloud
| Mobile and Cloud-ready | |
| Mobile Connectivity | Near Field Communication (NFC); Optional: Wi-Fi Direct, Wi-Fi (802.11 b/g/n/ac) |
| Mobile Printing | Mopria® Scan, Apple AirPrint™, Xerox® Print Service (Android), @PrintByXerox App;Optional: Xerox® Workplace Mobile App (iOS/Android) |
| Mobile Scanning | Mopria® Scan, Apple AirPrint™; Optional: Xerox® Workplace Mobile App (iOS/Android) |
| Mobile Apps andXerox App Gallery | Automate everyday processes with apps that translate, redact, eSign, personalize, print, convert, route, collaborate, and communicate. Visit xerox.com/WorkplaceApps to find apps by industry or workflow.Software and services: Xerox® DocuShare® Content Management Platform (xerox.com/ecm),XMPie® (xerox.com/XMPie), Xerox® Workplace Solutions (xerox.com/WorkplaceSolutions) |
| Xerox® WorkplaceCentral Platform | One-platform consistency for seamless productivity across computers, mobile devices, and printers. With the Workflow Central platform’s ever-expanding suite of cloud-based workflows, you can change documents into audio files for easy listening, convert PDF or image files to popular Microsoft formats for shareability with a wider audience, turn handwriting into legible, editable, and shareable text, translate to/from over 40 different languages, and automatically redact Personal Identifiable Information using set words or phrases |
| Xerox® Workplace Suite and Xerox® Workplace Cloud | Optional: Xerox® Workplace Suite is a modular set of workflows designed to save the customer’s time and money by providing effective control over their print fleet while enabling worker productivity and mobility through a set of robust workflows. Xerox enables ultimate customer flexibility by offering these capabilities in both an on-premises server version (Workplace Suite) and a cloud based-version (Workplace Cloud) of this solution |
