WideTEK® 48

WideTEK® 48

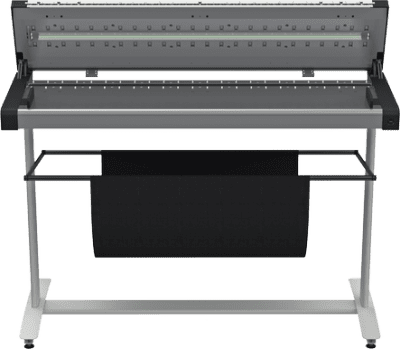

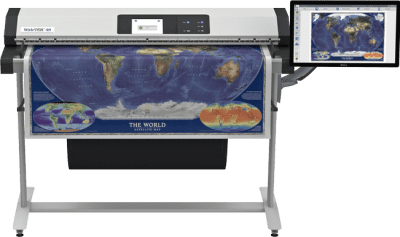

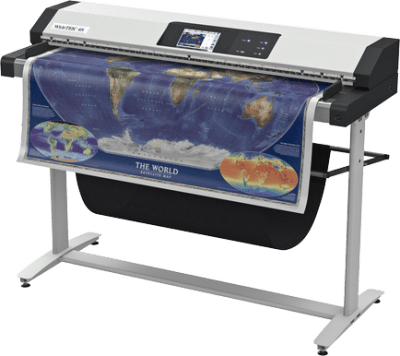

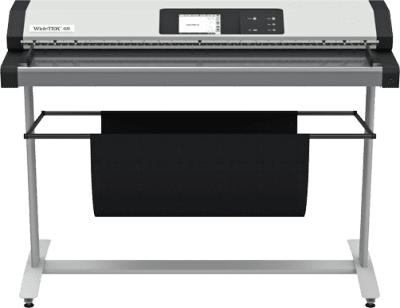

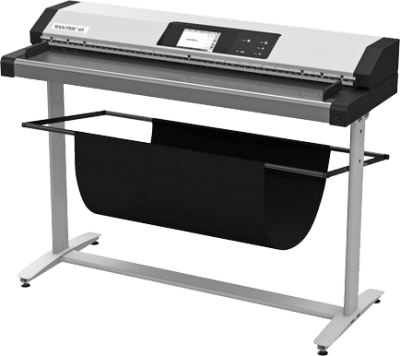

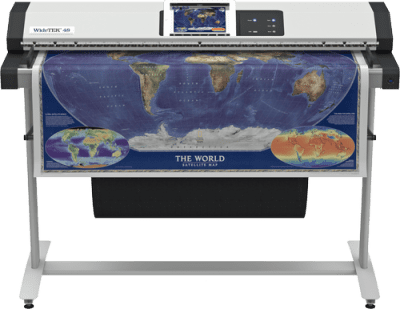

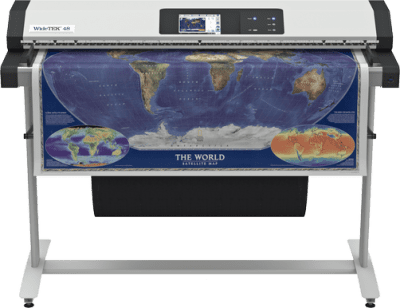

The WideTEK 48 wide format CCD scanner scans up to 48 inch (1220 mm) wide documents astonishingly fast. Bright white LED illumination ensures a long lifetime and best scan results. The WideTEK 48 gently scans due to special transport rollers that serve as pressure points ensuring safe document transport. The new background drum does not touch the glass plate at any time, avoiding scratches and document skews. For extra contrast on sepias and fi lm based documents, the standard black drum can be easily exchanged with a white drum, with no tools required.

• Face up scanning with on-the-fly rotation and modification of images without rescanning. Automated crop & deskew.

• For high resolution scans up to 48 inches (1220 mm) in width, 1200 x 1200 dpi scanner resolution

• Real-time display of images and modification, no rescanning

• Fastest color scanning, 11.2 inches per second at 200dpi

• Touchscreen enhanced versions of ScanWizard, PrintWizard and EasyScan

• Dust-free camera technology, LED illumination, sturdy steel document scanning bed

• Large 22" full HD color touchscreen for simplified operation

• Scan2USB for walk up scanning to USB 3.0, Scan2Print for output to any connected printer, Scan2Network for output to any network drive, Scan2FTP, Scan2Mail

• Easy installation via Scan2Net® technology

Technical

Scanner Optics CCD camera, scans in color, grayscale, B&W

Resolution 1200 x 1200 dpi scanner resolution 1200 x 600 dpi optical resolution 9600 x 9600 dpi interpolated (optional)

Document Size 1270 mm (50 inch width) nearly unlimited length in endless mode. Scans 1220 mm (48 inch) widths

Scanning Speed 200 dpi – 17 m/min (11.2 inch/s) 600 dpi – 4,6 m/min (3 inch/s)

Color Depth 48 bit color, 16 bit grayscale Scan output 24 bit color, 8 bit grayscale, bitonal, enhanced half- tone

Output Formats Multipage PDF (PDF/A) and TIFF, JPEG, JPEG 2000, PNM, PNG, BMP, TIFF (Raw, G3, G4, LZW, JPEG), AutoCAD DWF, JBIG, DjVu, DICOM, PCX, Postscript, EPS, Raw data Size H x W x D & Weight 228 x 1425 x 507 mm (9 x 56.1 x 20 inch) 53 kg (117 lbs.)

Quality (min.) ISO 19264-1 level B, FADGI ***, Metamorfoze Power Consumption < 0.5 W (Sleep) / 6.5 W (Standby) / < 60 W (Ready to scan) / < 120 W (Scanning)
