WideTEK 12

WideTEK 12

Order Now

Fits on desktop only 31 inches deep

Scans 12.5 x 18.5 inches in less than 3 seconds

3D captures textures

1200 x 1200dpi resolution

Touchscreen

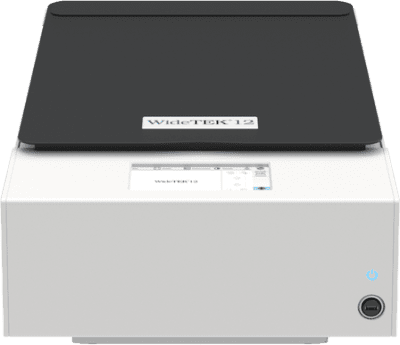

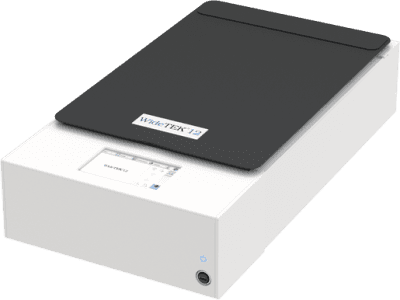

The WideTEK 12 Flatbed Scanner

Download
Categories: , Tags: , , ,

• 12.5 x 18.5 inch or A3+ scan in less than 3 seconds

• Borderless glass plate

• Scratch resistant & non-reflective

• 48 bit color depth

• Captures 3D surfaces and textures/fabric weaves

• 1200 x 1200 dpi scanner resolution

• Automatic crop & deskew

• On the fly rotation while scanning

• Real time display of scanned images,

modify images without rescanning

• Scan2USB -- Walk up Scanning to any USB device

• Scan2Print -- Copy to networked printers or hot folders

• Scan2Network -- Output to network resources, SMB, FTP

• Output formats: PDF, PDF/A, JPEG, TIFF, PNM, multipage PDF and TIFF, DICOM

Scan2Pad -- Operation via tablet, smartphone or other mobile device

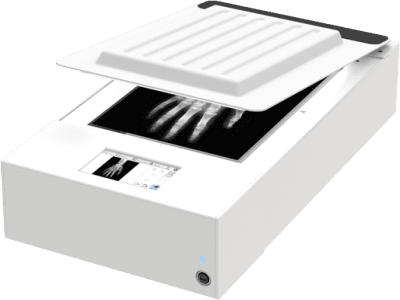

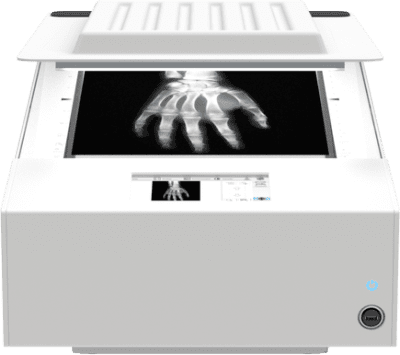

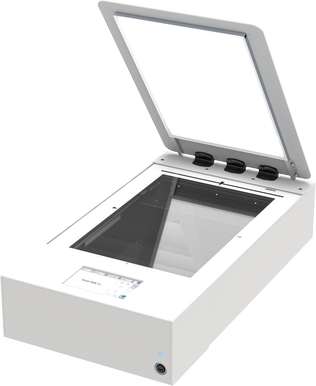

The optional backlight unit replaces the standard scanner lid and is easily assembled.

Users can scan with or without the backlight by simply switching the light on or off.

The backlight lid can be purchased separately for customers who already own a WideTEK 12-650.

Scan X-rays,

glass negatives,

35mm microfilm aperture cards, cutout stencils, sepias and film.

Features

WideTEK® 12 Functions & Features

Functions, features and options available on the WideTEK® 12-650 color flatbed scanner.

WideTEK® 12 Functions

  • 12.5 x 18.5 inch or ISO/DIN A3+ scan of full document bed in less than 3 seconds
  • Exceeds FADGI *** guidelines, Metamorfoze light, ISO 19264-1
  • Borderless glass plate prevents bent edges on source documents. Scratch resistant & non-reflective.
  • 48 bit color depth
  • Captures 3D surfaces, textures of various materials, Braille print
  • 1200 x 1200 dpi scanner resolution
  • Small footprint but scans 19% more surface area than A3
  • 17.4 inch width, only slightly more than scanning area
  • Automatic crop & deskew
  • On the fly rotation while scanning facilitates postprocessing
  • Real time display of scanned images, modify images without rescanning
  • Scan2USB — Walk up Scanning to any USB device
  • Scan2Print — Copy to networked printers or hot folders
  • Scan2Network — Output to network resources, SMB, FTP
  • Output formats: PDF, PDF/A, JPEG, TIFF, PNM, multipage PDF and TIFF, DICOM and many more
  • Scan2Pad® — Operation via tablet, smartphone or other mobile device
  • Wide color gamut: supports sRGB, Adobe RGB and native RGB

WideTEK® 12 Features

  • Integrated 64bit Linux, Intel i3 quad core processor, 8 GB memory
  • Dual LED illumination with integrated optical diffusor for optimal results, no warm up, IR-/UV-free
  • Large color WVGA touchscreen for simplified operation
  • User interface configurable in your language
  • OS independent, runs with Windows 7, 8, 10, Linux, Mac
  • ScanWizard uses any browser: IE, Safari, Chrome, Firefox
  • Integrated walk up scanning software
  • Easy installation via Scan2Net® Technology
  • Remote maintenance and troubleshooting
  • Firmware updates via web interface
  • Dust-free camera technology

Specifications

Scanner Optics CCD camera, scans in color, grayscale, B&W

Resolution 1200 x 1200 dpi scanner resolution, 1200 x 600 dpi optical resolution
9600 x 9600 dpi interpolated (optional)

Document Size 12.5 x 18.5 inches

Fastest Speed 300 dpi, full bed < 3 sec in color 300 dpi, full bed < 6 sec in 3D texture mode

Color Depth 48 bit color, 16 bit grayscale

Scan output 24 bit color, 8 bit grayscale, bitonal, enhanced halftone

Output Formats Multipage PDF (PDF/A) and TIFF, JPEG, JPEG 2000, PNM, PNG, BMP,
TIFF (Raw, G3, G4, LZW, JPEG), AutoCAD DWF, JBIG, DjVu, DICOM, PCX, Postscript,
EPS, Raw data

Size H x W x D 222 x 440 x 795 mm (8.7 x 17.4 x 31.3 inches)

Weight 28 kg (62 lbs.)

Quality (min.) ISO 19264-1 level B, FADGI ***, Metamorfoze

Power Consumption < 0.5 W (Sleep) / 2.5 W (Standby) / 28 W (Ready to scan) / 55 W (Scanning)

Options

WideTEK® 12 Options

  • Backlight unit for transparencies, films, photos, X-rays.
    Replaces the standard lid and includes power supply.
  • Batch Scan Wizard — Software option for batch scanning
  • Attach an external monitor for instant previews
  • Scan2OCR — Background OCR option for Scan2Net scanners (Only in connection with ScanWizard)
  • Full Coverage Warranty — Up to 5 years subscription for full coverage warranty package and free spare parts

Video
