Xerox C230

Xerox C230

The future of work demands printers that are reliable, secure, and easy to use, especially for small- to medium-sized businesses and remote employees who need technology that works as hard as they do. Because the devices meant to support productivity should add convenience, not complexity.

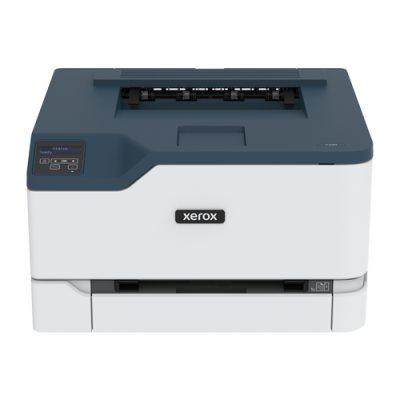

Perfect for small work teams, home offices, and tight spaces, the Xerox C230 Color Printer and C235 Color Multifunction Printer (MFP) deliver unparalleled dependability, performance, and economy without the frustration of a long, complicated setup.


The Xerox® Easy Assist app simplifies installation, monitoring, and management of your printer or MFP right from your mobile phone. It provides easy access to self-support services and real-time monitoring of printer performance. And, Xerox® Smart Start Software takes the guesswork out of setup by automating the installation of the latest software for your printer or MFP on your computer – all without IT support – allowing you to be up and running quickly.


Speed1 Up to 24 color/B&W ppm Letter

Up to 22 color/B&W ppm A4

Duty Cycle2 Up to 30,000 pages/month

Processor 1 GHz Dual Core

Memory 256 MB 512 MB

Connectivity Hi-Speed USB 2.0 (Type B), Ethernet 10/100 BaseTX, Wireless 802.11 b/g/n Hi-Speed USB 2.0 (Type B), Ethernet 10/100 BaseTX, Wireless 802.11 b/g/n,

Hi-Speed USB 2.0 (Type A – Thumbdrive)

Weights and

Dimensions (H x W x D)

9.6 x 16.2 x 15.5 in/35.5 lb

243.7 x 411.2 x 394.1 mm/16.1 kg

13.6 x 16.2 x 15.5 in/42.7 lb

344.4 x 411.2 x 394.1 mm/19.4 kg

Copy and Print Resolution Print Only:

600 x 600 dpi, 4800 Color Quality

Copy and Print:

Copy 600 x 600 dpi

Print 600 x 600 dpi, 4800 Color Quality

First-copy-out Time N/A As fast as 14 seconds color/10.5 seconds B&W

First-print-out Time As fast as 11.4 seconds color/11.0 seconds B&W As fast as 11.1 seconds color/11.0 B&W

Page Description Languages PCL® 5/6 Emulation, PostScript® 3, Emulation, PCLm

Print Features One Touch UI, Normal, Secure, Saved, and Sample Set Job Types, Duplex, Orientation, Collation, Print Job ID in Margins, Draft Mode, N-up, Booklet Layout,

Watermark, Tray and Toner Status, Rotate Image 180 degrees, Saved Settings, Earth Smart Settings

Mobile Printing Apple AirPrint™, Mopria® Print Service, Chromebook, Wi-Fi Direct®

Scan N/A Flatbed Scanner with ADF

B&W and color scanning up to 600 x 600 dpi

Scan Speed: B&W and Color: 21/20 ipm Letter/A4

Scan Destinations: Email, front-side USB drive, FTP, Network or USB

connected computer, Windows Network folder

Scan File Formats: PDF (regular, secure, archival PDF/A), TIFF, JPEG

Scan Compressions: PDF 1/8/24 bit ZLIB (Flate), TIFF 1/8/24 bit Packbits,

LZW, JPEG, JPG 8/24 bit

Fax N/A Max 33.6 K bps, V.34 Half-Duplex Kbps

MH/MR/MMR/JBIG Compression Auto Answer, Auto Redial, Auto Reduction,

Broadcast Send, Junk Fax Filter, Fax Address Book, Fax Forward includes:

Fax, Email, FTP, Network Folder, Called Number

Security Digitally Signed Firmware Updates, Certificate Management, Secure Password Reset, TCP Connection Filtering, Port Filtering, Access Controls, Confidential

Print, Non-Volatile Memory Wipe, Fax/Network Separation, Protected USB Ports, Auto-insertion of Sender’s Email Address, Login Restrictions, WPA3, TLS 1.3

Print Drivers Windows® 7 SP1, 8, 8.1 Update 1, 10. Windows Server® 2008 SP2 (32- and 64-bit), Windows Server 2008 R2 SP1, Windows Server 2012,

Windows Server 2012 R2, Windows Server 2019, macOS 10.15, 11, 12, Microsoft Universal Print

For more information about supported Operating Systems, please visit our Drivers & Downloads page and specify your device at

Optional Cloud Services Do more with Xerox Workflow Central

Media Handling

Main Tray Up to 250 sheets, 75 gsm; Letter/A4, A5, A6 and custom sizes: 3.94 x 5.83 in to 8.5 x 14 in/100 x 148 mm to 216 x 340 mm

Manual Feed Slot 1 sheet of 75 gsm; A4/Letter, A5, A6, and custom sizes: 3.94 x 5.83 in to 8.5 x 14 in/100 x 148 mm to 216 x 340 mm

Paper Output 100 sheets of 75 gsm paper, face down, automatic two-sided printing available

Media Types Plain Paper, Light Paper, Heavy Paper, Card Stock, Labels (Paper Labels), Envelope, Colored Paper, Letterhead, Preprinted, Bond, Glossy,

Rough/Cotton, Recycled

Automatic Document Feeder

Media Handling

Up to 50 pages, 20 lb bond/75 gsm

A6 to A4 (4.1 x 5.8 in to 8.5 x 14.0 in/104.1 x 147.3 mm to 215.9 x 355.6 mm)

Media Weights ADF: 16 to 24 lb bond/60 to 90 gsm

Main Tray 16 to 47 lb bond/60 to 176 gsm

Manual Feed Slot 16 to 47 lb bond/60 to 176 gsm

Device Management Xerox® Embedded Web Server, Xerox® CentreWare® Web Software, Email alerts, Apple Bonjour®, Xerox Easy Assist App

In The Box

• Xerox C235 Color Multifunction Printer or C230 Color Printer

• Pre-installed Starter Capacity CMYK Print Cartridges: 500 print capacity4

• Software and Documentation CD (with User Manual, Quick Install Guide, Safety, Regulatory, Recycling

and Print Drivers, and Warranty Statement)

• Installation Guide Product Safety Sheet

• Quick Use Guide

• Power Cord
