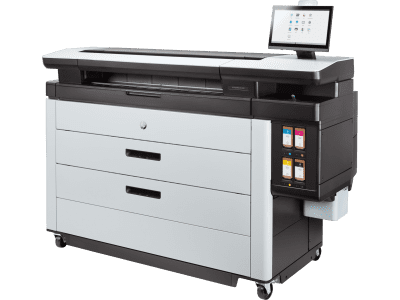

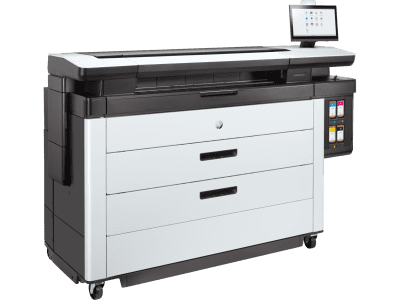

HP PageWide XL 8200
Respond immediately with the fastest large-format printer and speeds up to 30 D/A1 pgs/min. Easily operate from the front and back with the market’s largest 15-inch touchscreen. Free up operator time with a full end-to-end solution.
React immediately, meet the tightest deadlines with the fastest large-format printer. Gain efficiency, enhanced workflows. Protect your network with the world’s most secure printer. The full end-to-end solution enables up to 50% fewer costs.
Technical Specifications
| Acoustic Power Emissions (active, printing) | ≤7.8 B(A) (operating), ≤5.5 B(A) (idle), ≤3.5 B(A) (sleep) |
| Acoustic Pressure Emissions | ≤60 dB(A) (operating), ≤36 dB(A) (idle), ≤20 dB(A) (sleep) |
| Average Printhead Life | 32 L |
| Code Name | Angel |
| Connectivity, Std | Gigabit Ethernet (1000Base-T), TCP/IP, BootP/DHCP, USB 2.0 host |
| Copyright Notice | © Copyright 2021 HP Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein. |
| Core Size (imperial) | 3 in |
| Core Size (metric) | 7.6 cm |
| Electromagnetic Emission Standard | Compliant with Class A requirements, including: USA (FCC rules), Canada (ICES), EU (EMC Directive), Australia and New Zealand (RCM), Japan (VCCI), Korea (KC) |
| Energy Star Certified | Yes |
| Environmental Certifications | ENERGY STAR, EPEAT Registered, CE marking (including RoHS, WEEE, REACH). In compliance with WW RoHS materials restriction requirements in China, Korea, India, Vietnam, Turkey, Serbia, and Ukraine |
| First Page Out | 18 sec (from USB) |
| Hard Disk | 1 x 128 GB SSD, 1 x 500 GB HDD, both self-encrypted with AES-256 |
| Imperial | 75 ft/min |
| Ink Types | Pigment-based (C, M, Y, K) |
| Interface | 15.6-inch (396-mm) TFT (LED blacklight) 16:9-format HD capacitive touchscreen |
| Line Accuracy | ±0.1%[1] |
| Manufacturer Warranty | 90 days |
| Media Sizes Standard (imperial Rolls) | 11 to 40 in |
| Media Thickness (by paper path) | Up to 15.7 mil |
| Media Thickness (metric) | Up to 0.4 mm |
| Media Types | Bond and recycled papers, poster papers, polypropylene, Tyvek papers, matte film |
| Media Weights Supported, By Paper Path (Imperial) | 19 to 53 lb |
| Media Weights Supported, By Paper Path (metric) | 70 to 200 g/m² |
| Media sizes standard (metric rolls) | 279 to 1016 mm |
| Metric | 23 m/min |
| Operating Humidity Range | 20 to 80% RH, depending on media type |
| Operating Temperature Range (celsius) | 5 to 40ºC |
| Operating Temperature Range (fahrenheit) | 41 to 104ºF |
| Package Dimensions (imperial) | 88.9 x 40.9 x 62.1 in |
| Package Dimensions (metric) | 2257 x 1040 x 1578 mm |
| Package Weight (imperial) | Standard: 1272 lb; With high-capacity stacker: 1625 lb |
| Package Weight (metric) | Standard: 577 kg; With high-capacity stacker: 737 kg |
| Paper Handling Optional/output | Varies by model: top stacker (up to 100-page capacity), high-capacity stacker (up to 500-page capacity), online folder |
| Paper Handling Standard/input | Basket |
| Paper Handling Standard/output | Varies by model: High-capacity stacker (up to 500-page capacity) |
| Power Consumption Description | 0.37 kW (typical); 1.2 kW (max printing); 120 W (ready); <1 W (<16 W with embedded Digital Front End) (sleep) |
| Power Supply Required | Input voltage (auto ranging) 200-240 V (±10%), 50/60 Hz (±3 Hz), 8 A |
| Print Cartridge Volume Delivered (metric) | 1 L |
| Print Cartridges, Number | 4 (C, M, Y, K) |
| Print Heads | 8 (C, M, Y, K) |
| Print Languages, Optional | Adobe PostScript 3, Adobe PDF 1.7 (with PostScript/PDF upgrade) |
| Print Languages, Standard | HP-GL/2, TIFF, JPEG |
| Print Resolution Color (best) | 1200 x 1200 dpi |
| Print Technology | HP PageWide Technology |
| Print Time A0/Arch E/ANSI E (short edge first) | 18 pages/min, 800 pages/hr |
| Print Time A1/Arch D/ANSI D (long edge first) | 30 pages/min, 1500 pages/hr |
| Printer Description | Large-format color printer |
| Printhead Warranty | 10 L or 12 months |
| Printing Path | HP SmartStream software (optional), HP PageWide XL print drivers (PDF, HP-GL/2, and PCL3) |
| Processor Type | Intel Core i5 |
| Product Dimensions (imperial) | Standard: 77 x 30.9 x 64.4 in; With high-capacity stacker: 77 x 80.3 x 64.4 in |
| Product Dimensions (metric) | Standard: 1955 x 785 x 1637 mm; With high-capacity stacker: 1955 x 2041 x 1637 mm |
| Product Logos | Adobe PDF Print Engine; Adobe PostScript 3; ColorPRO Technology; Energy Star; EPEAT green; Gold IPv6 Ready; Mac; Windows 10 Compatible |
| Product-specific Additional Information Pointer | http://www.hp.com/go/pagewidexl8200 |
| Recommended Media | HP Universal Bond Paper, 3-in Core (FSC® certified)[2] (recyclable)[3]; HP Production Matte Poster Paper, 3-in Core (FSC® certified)[2] (recyclable)[3]; HP Production Satin Poster Paper, 3-in Core (FSC® certified)[2] (recyclable)[3]; HP Universal Heavyweight Coated Paper, 3-in Core (FSC® certified)[2] (recyclable)[3]; HP Matte Polypropylene, 3-in Core |
| Remote Management Software | HP Partner Link, HP Embedded Web Server, HP Web Jetadmin |
| Roll External Diameter | Up to 177 mm |
| Roll External Diameter (imperial) | Up to 7 in |
| Roll Maximum Input | 2 rolls default with auto-switching, expandable to 6 rolls |
| Roll Media Maximum Output (imperial) | Up to 650 ft |
| Roll Media Maximum Output (metric) | Up to 200 m |
| Safety Approvals and Requirements | IEC 60950-1+A1+A2 and IEC 62368-1 2nd ed. compliant; USA and Canada (CSA listed); EU (LVD and EN 60950-1 and 62368-1 compliant); Russia, Belarus, and Kazakhstan (EAC); China (CCC) |
| Standard Memory | 16 GB DDR4 |
| Subcategory (facet) | Large format |
| Supported Applications, Primary | Line drawings; Maps; Orthophotos; Posters |
| Taxonomy (facet) | Large Format Printers/ Plotters |
| Tech Spec Footnote 01 | [1] ±0.1% of the specified vector length or ±0.2 mm (whichever greater) at 23ºC (73ºF), 50-60% relative humidity, on A0/E printing material in Best or Normal mode with HP Matte Polypropylene and HP PageWide XL pigment ink. |
| Tech Spec Footnote 02 | [2] BMG trademark license code FSC®-C115319, see http://www.fsc.org. HP trademark license code FSC®-C017543, see http://www.fsc.org. Not all FSC®-certified products are available in all regions. For information about HP large format printing materials, please visit http://www.HPLFMedia.com. |
| Tech Spec Footnote 03 | [3] Can be recycled through commonly available recycling programs. |
| Theoretical Minimum Line Width (imperial) | 0.0008 in (HP-GL/2 addressable) |
| Theoretical Minimum Line Width (metric) | 0.02 mm (HP-GL/2 addressable) |
| Warm-up Time | No warm up |
| Weight (imperial) | Standard: 988 lb; With high-capacity stacker: 1274 lb |
| Weight (metric) | Standard: 448 kg; With high-capacity stacker: 578 kg |
