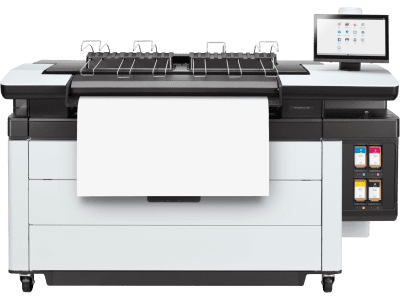

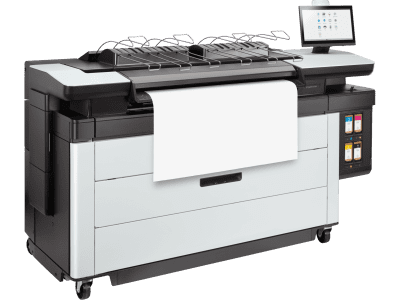

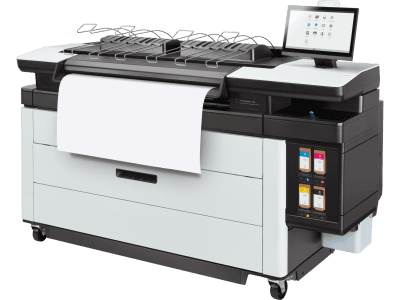

HP PageWide XL 5200


Original price was: $33,142.00.Current price is: $28,999.00.

HP PageWide XL 5200

The HP Pagewide XL 5200 plotter responds right away with print speeds up to 20 D pages per minute. Produce reliable technical prints with vivid color, crisp lines, and fine detail that beat LED plotters. Gain productivity with less maintenance using this unit as an affordable high production technical printer. The HP Pagewide XL is first in class and will certainly impress.

Categories: ,

If you're looking for a large format CAD plotter to affordably print, scan and copy in monochrome and color, then you must consider the HP PWXL 5200. We have a very large install base of these units. It's a top contender! The XL 5200 technical CAD large format pagewide prints color at the same speed as black and white. The HP Pagewide XL 5200 prints as 1200 dpi at 20 pages per minute. This unit is top of class and only requires a 110 electrical outlet!  Gain broad control over your printing costs and see up to 10 times lower energy consumption than comparable LED printers. Our customers are amazed that we print color CAD documents for the same price as black and white CAD documents. We not only sale and service HP pagewide wide format printers but we also use them internally for our reprographic printing.

Technical Specifications

Name Value
OID 2100116729
Product Name HP PageWide XL 5200 Printer series
Acoustic Power Emissions (active, printing) ≤7.8 B(A) (operating), ≤5.5 B(A) (idle), ≤3.5 B(A) (sleep)
Acoustic Pressure Emissions ≤60 dB(A) (operating), ≤36 dB(A) (idle), ≤20 dB(A) (sleep)
Average Printhead Life 32 L
Code Name Angel
Connectivity, Std Gigabit Ethernet (1000Base-T), TCP/IP, BootP/DHCP, USB 2.0 host
Copyright Notice © Copyright 2021 HP Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
Core Size (imperial) 3 in
Core Size (metric) 7.6 cm
Electromagnetic Emission Standard Compliant with Class A requirements, including: USA (FCC rules), Canada (ICES), EU (EMC Directive), Australia and New Zealand (RCM), Japan (VCCI), Korea (KC)
Energy Star Certified Yes
Environmental Certifications ENERGY STAR, EPEAT Registered, CE marking (including RoHS, WEEE, REACH). In compliance with WW RoHS materials restriction requirements in China, Korea, India, Vietnam, Turkey, Serbia, and Ukraine
First Page Out 20 sec (from USB)
Hard Disk 1 x 128 GB SSD, 1 x 500 GB HDD, both self-encrypted with AES-256
Imperial 50 ft/min
Ink Types Pigment-based (C, M, Y, K)
Interface 15.6-inch (396-mm) TFT (LED blacklight) 16:9-format HD capacitive touchscreen
Line Accuracy ±0.1%[1]
Linear Scan Speed (imperial) Color: up to 6 in/sec; Grayscale: up to 10 in/sec
Linear Scan Speed (metric) Color: up to 15.24 cm/sec; Grayscale: up to 25.4 cm/sec
Manufacturer Warranty 90 days
Maximum Copy Length (imperial) 374.5 in
Maximum Copy Length (metric) 9.5 m
Maximum Scan Length (imperial) 164 ft (PDF), 39 ft (TIFF), 26 ft (JPEG)[2]
Maximum Scan Length (metric) 50 m (PDF), 12 m (TIFF), 8 m (JPEG)[2]
Media Sizes Standard (imperial Rolls) 11 to 40 in
Media Thickness (by paper path) Up to 15.7 mil
Media Thickness (imperial) 0.01 in
Media Thickness (metric) Up to 0.4 mm
Media Thickness Maximum (metric) 0.26 mm
Media Types Bond and recycled papers, poster papers, polypropylene, Tyvek papers, matte film
Media Weights Supported, By Paper Path (Imperial) 19 to 53 lb
Media Weights Supported, By Paper Path (metric) 70 to 200 g/m²
Media sizes standard (metric rolls) 279 to 1016 mm
Metric 15 m/min
Operating Humidity Range 20 to 80% RH, depending on media type
Operating Temperature Range (celsius) 5 to 40ºC
Operating Temperature Range (fahrenheit) 41 to 104ºF
Package Dimensions (imperial) 88.9 x 40.9 x 62.1 in
Package Dimensions (metric) 2257 x 1040 x 1578 mm
Package Weight (imperial) Printer: 1137 lb; Printer with top stacker: 1313 lb; Printer with high-capactity stacker: 1490 lb; MFP: 1192 lb; MFP with top stacker: 1368 lb; MFP with high-capacity stacker: 1545 lb
Package Weight (metric) Printer: 516 kg; Printer with top stacker: 596 kg; Printer with high-capactity stacker: 676 kg; MFP: 541 kg; MFP with top stacker: 621 kg; MFP with high-capacity stacker: 701 kg
Paper Handling Optional/output Varies by model: top stacker (up to 100-page capacity), high-capacity stacker (up to 500-page capacity), online folder
Paper Handling Standard/input Basket
Paper Handling Standard/output Varies by model: top stacker (up to 100-page capacity), high-capacity stacker (up to 500-page capacity)
Power Consumption Description 0.29 kW (typical); 0.9 kW (max printing); 100 W (ready); <1 W (<18 W with embedded Digital Front End) (sleep)
Power Supply Required Input voltage (auto ranging) 100-127/200-240 V (±10%), 50/60 Hz (±3 Hz), 10/5 A
Print Cartridge Volume Delivered (metric) AMS, China: 1 L; EMEA, APJ: 1 L (K), 500 ml (C, M, Y) APJ: 1 L (K), 500 ml (C, M, Y)
Print Cartridges, Number 4 (C, M, Y, K)
Print Heads 8 (C, M, Y, K)
Print Languages, Optional Adobe PostScript 3, Adobe PDF 1.7 (with PostScript/PDF upgrade)
Print Languages, Standard HP-GL/2, TIFF, JPEG
Print Resolution Color (best) 1200 x 1200 dpi
Print Technology HP PageWide Technology
Print Time A0/Arch E/ANSI E (short edge first) 11 pages/min, 603 pages/hr
Print Time A1/Arch D/ANSI D (long edge first) 20 pages/min, 1100 pages/hr
Printer Description Large-format color MFP or printer
Printhead Warranty 10 L or 12 months
Printing Path HP SmartStream software (optional), HP Click printing software, HP PageWide XL print drivers (PDF, HP-GL/2, and PCL3)
Processor Type Intel Core i3
Product Dimensions (imperial) Standard: 77 x 30.9 x 55.7 in; With high-capacity stacker: 77 x 80.3 x 55.7 in
Product Dimensions (metric) Standard: 1955 x 785 x 1414 mm; With high-capacity stacker: 1955 x 2041 x 1414 mm
Product Logos Adobe PDF Print Engine; Adobe PostScript 3; ColorPRO Technology; Energy Star; EPEAT green; Gold IPv6 Ready; Mac; Windows 10 Compatible
Product-specific Additional Information Pointer http://www.hp.com/go/pagewidexl5200
Recommended Media HP Universal Bond Paper, 3-in Core (FSC® certified)[3] (recyclable)[4]; HP Production Matte Poster Paper, 3-in Core (FSC® certified)[3] (recyclable)[4]; HP Production Satin Poster Paper, 3-in Core (FSC® certified)[3] (recyclable)[4]; HP Universal Heavyweight Coated Paper, 3-in Core (FSC® certified)[3] (recyclable)[4]; HP Matte Polypropylene, 3-in Core
Remote Management Software HP Partner Link, HP Embedded Web Server, HP Web Jetadmin
Roll External Diameter Up to 177 mm
Roll External Diameter (imperial) Up to 7 in
Roll Maximum Input 2 rolls default with auto-switching, expandable to 4 rolls
Roll Media Maximum Output (imperial) Up to 650 ft
Roll Media Maximum Output (metric) Up to 200 m
Safety Approvals and Requirements IEC 60950-1+A1+A2 and IEC 62368-1 2nd ed. compliant; USA and Canada (CSA listed); EU (LVD and EN 60950-1 and 62368-1 compliant); Russia, Belarus, and Kazakhstan (EAC); China (CCC)
Scan File Format JPEG, TIFF, multi-TIFF, PDF, PDFA, multi-PDF, multi-PDFA (with PostScript/PDF upgrade)
Scan Input Modes Printer storage, USB drive, network folder (SMB), My home folder, scan to email, scan to HP SmartStream software
Scan Resolution, Optical 1200 dpi
Scan Size Maximum (flatbed, imperial) Up to 36 in
Scan Size Maximum (flatbed, metric) Up to 914 mm
Scan Type 36-in (91-cm) CIS scanner
Scanner Advanced Features Live preview, scan quicksets, smart background removal, black enhancement, automatic de-skew, reduce scan speed, post-edit settings (contrast, brightness, rotation, cropping and skew)
Standard Memory 16 GB DDR4
Subcategory (facet) Large format
Supported Applications, Primary Line drawings; Maps; Orthophotos; Posters
Taxonomy (facet) Large Format Printers/ Plotters
Tech Spec Footnote 01 [1] ±0.1% of the specified vector length or ±0.2 mm (whichever greater) at 23ºC (73ºF), 50-60% relative humidity, on A0/E printing material in Best or Normal mode with HP Matte Polypropylene and HP PageWide XL pigment ink.
Tech Spec Footnote 02 [2] Scanned at 200 dpi. PDF scanning available on PostScript models only.
Tech Spec Footnote 03 [3] BMG trademark license code FSC®-C115319, see http://www.fsc.org. HP trademark license code FSC®-C017543, see http://www.fsc.org. Not all FSC®-certified products are available in all regions. For information about HP large format printing materials, please visit http://www.HPLFMedia.com.
Tech Spec Footnote 04 [4] Can be recycled through commonly available recycling programs.
Theoretical Minimum Line Width (imperial) 0.0008 in (HP-GL/2 addressable)
Theoretical Minimum Line Width (metric) 0.02 mm (HP-GL/2 addressable)
Warm-up Time No warm up
Weight (imperial) Printer: 842 lb; Printer with top stacker: 930 lb; Printer with high-capactity stacker: 1128 lb; MFP: 908 lb; MFP with top stacker: 996 lb; MFP with high-capacity stacker: 1194 lb
Weight (metric) Printer: 382 kg; Printer with top stacker: 422 kg; Printer with high-capactity stacker: 512 kg; MFP: 412 kg; MFP with top stacker: 452 kg; MFP with high-capacity stacker: 542 kg
